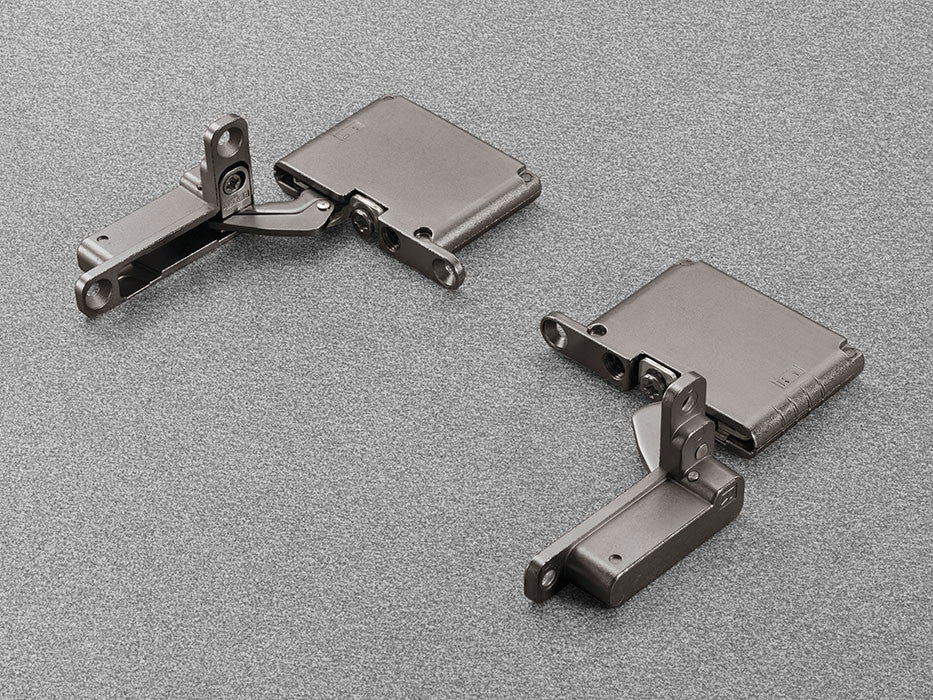

Salice Air Push-to-Open Hinge

Description

This listing is for the model featuring integrated push-to-open mechanism.

Please note the magnetic catches are sold separately. You need to purchase:

1 x DPMB289 Magnetic Release Device

1 x DP39XXG Adjustable Magnetic Retaining Catch

Available in:

• Titanium - CELPX66XXV
• Nickel - CELPX99XXV

Please select your requirements using the drop down boxes.

Specifications

• For minimum 18mm thick doors and aluminium framed doors
• Maximum Door Weight: 20kg
• Maximum Door Dimension: 2700mm (h) x 600mm (w)
• 16.5mm Deep Metal Cup in Door
• Gap require between door and frame: 2.5mm
• 105 Degree Opening
• Possible drilling distance on door: 3-6mm for wooden doors
• Fixed 4mm for aluminium doors

Downloads

 Air Technical Brochure PDF
