Salice Excessories Hanger Rail Centre Support to suit Straight End Supports

These are designed to be used with the straight style end supports here.

Designed to provide extra support when using a Salice Excessories Hanger rail over 1200mm in length or for loads over 15kg. Priced and sold each.

Manufactured from die-cast aluminium finished with an epoxy-based powder and available in two finishes:

• Metal Grey Brown
• Desert Taupe

Two fixing types available:

• Top Fixing
• Bottom Fixing

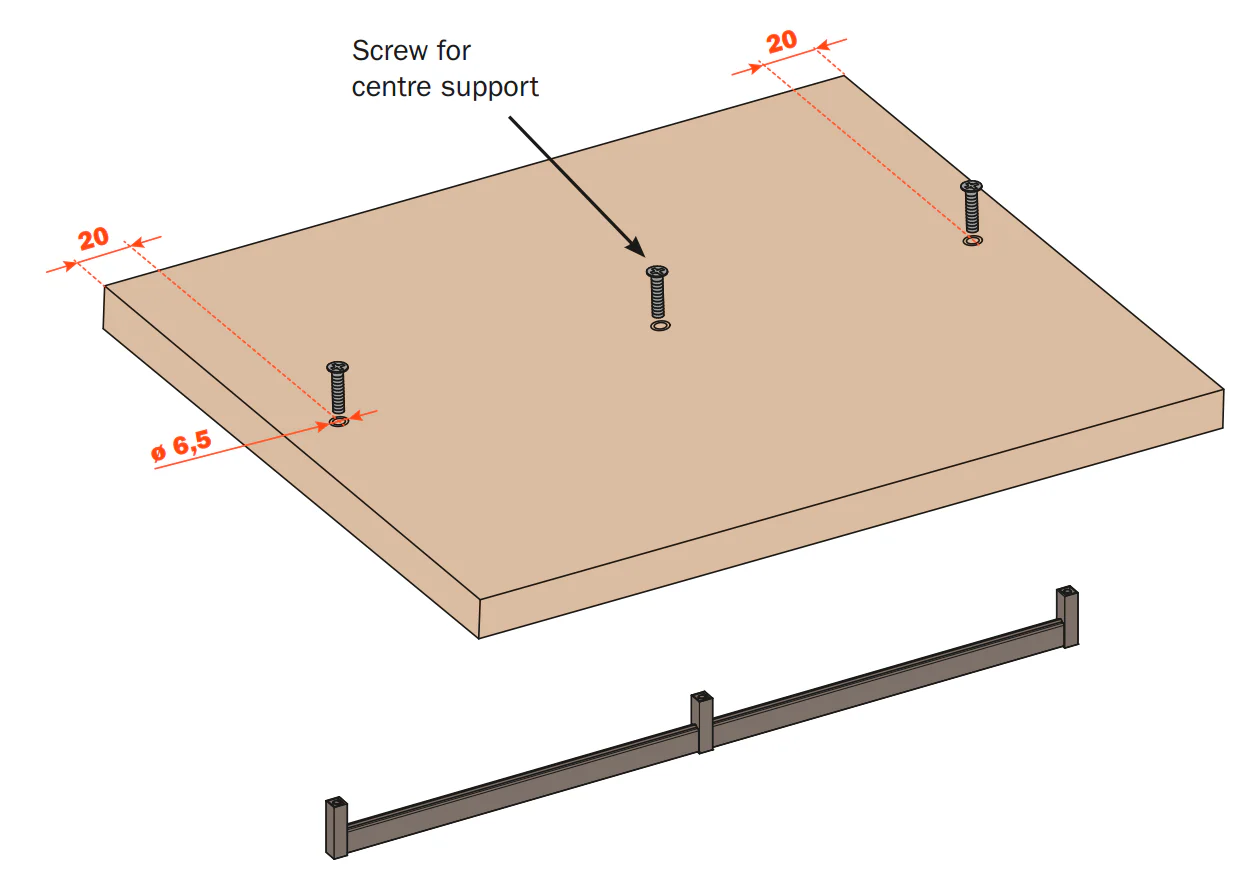

Top Fixing:

Designed for to be fixed with M6 machine screws from the top of the wardrobe or shelf within the wardrobe. Screws not supplied. Required size = M6 x (material thickness + 10/15mm).

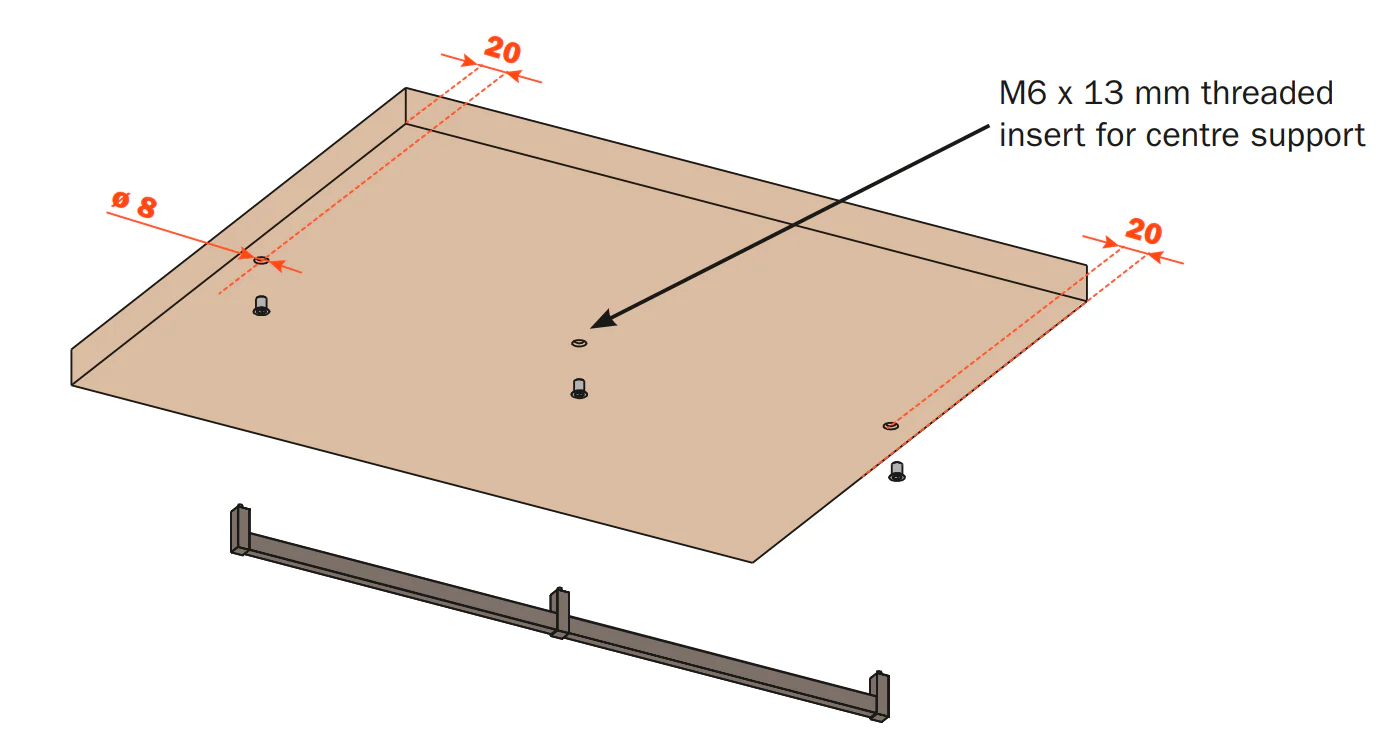

Bottom Fixing:

Fixed with threaded inserts and pins. Please see the pictures on the page.

Codes:	Top Fixing	Bottom Fixing
Metal Grey Brown	VE80DAHA1133B	VE80DAHA1233B
Desert Taupe	VE80DAHA1143B	VE80DAHA1243B
